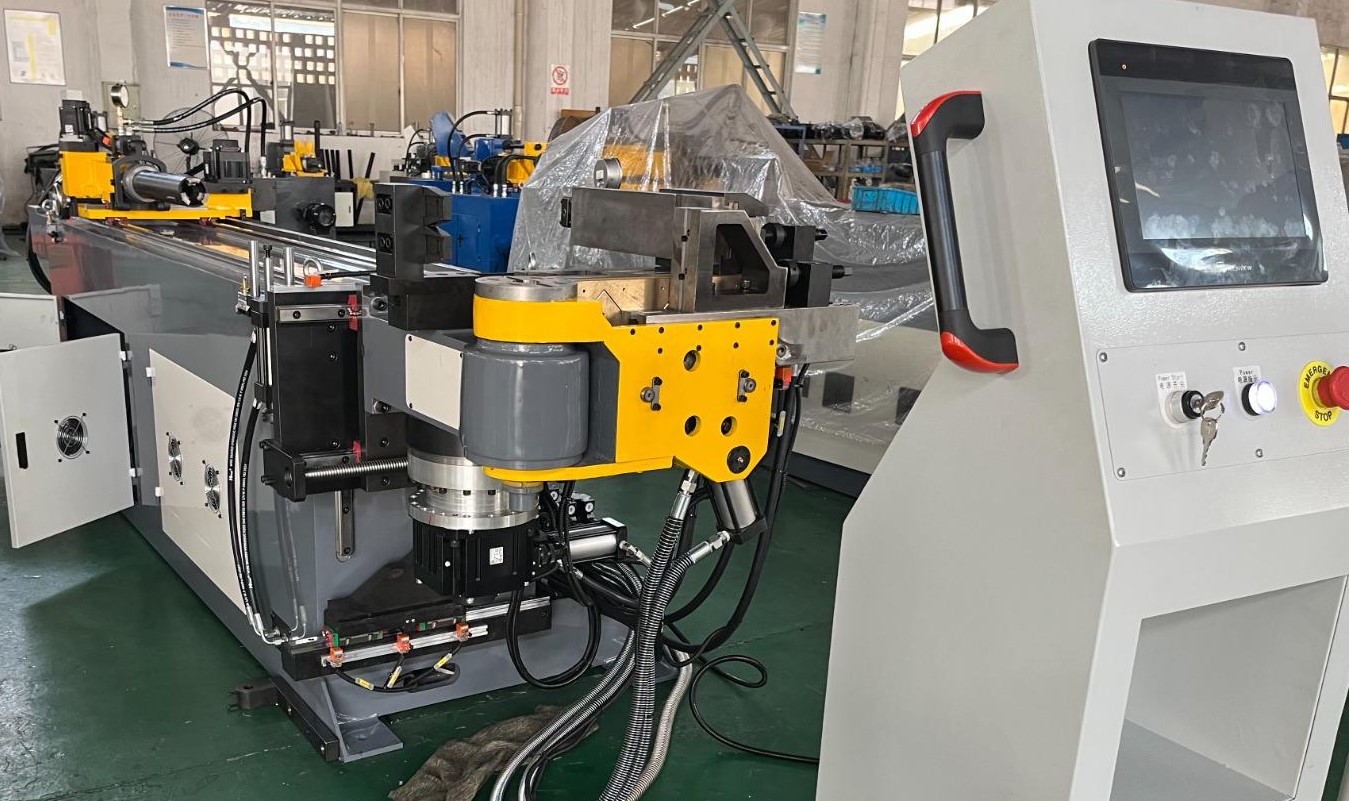

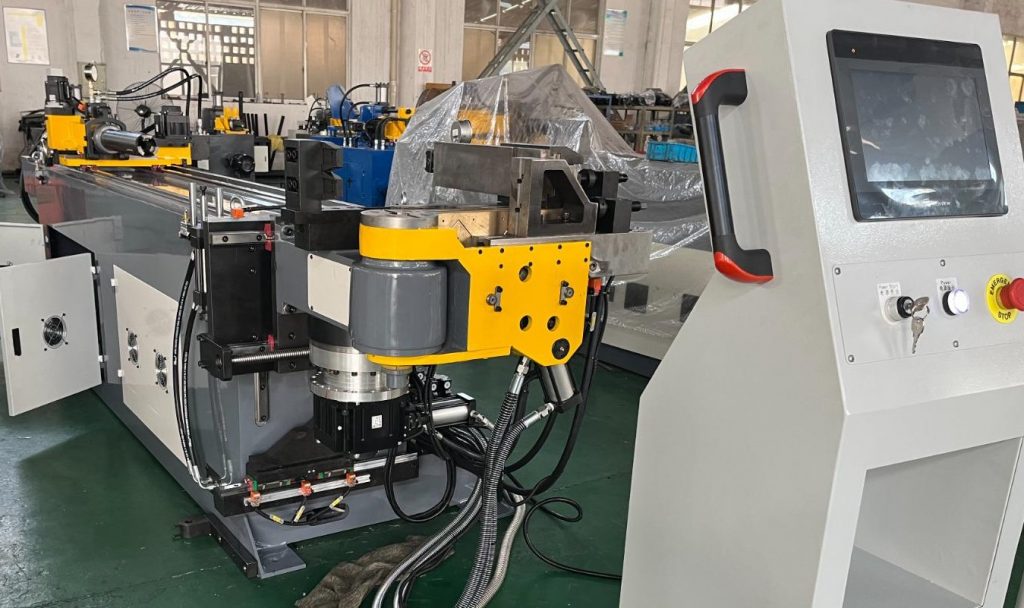

Hippo model SB38CNC-TDR-4, 2 stack 4 axis CNC Tube Bender,
SN: 20240905008, Year: 2024
SPECIFICATIONS:
Controller storage capacity 2000 sets program 32 bends for each program
Max bending capability Φ38x3mm,
Round Tubing, mild steel, OD x wall
1D bend: 1” x .060”
1.5D bend: 1.5” .083”
Square Tubing, mild or stainless steel,
2.5D bend: 1” x .060”
Round Pipe, Schedule 40: ¾”
Bending radius 25～150mm
Bending angle 0～195°
Valid mandrel length 2000mm
Bending control Servomotor 3500w
Bending speed 90°/sec
Bending accuracy ±0.1°
Feeding control Servomotor 1000w
Feeding speed 200~1000mm/sec
Feeding accuracy ±0.1mm
Rotating control Servomotor 400w
Rotating speed 300°/sec
Rotating accuracy ±0.1°
Mandrel movement control Hydraulic control
Thickness reduced after bent ＜10%(CLR:1.5D)
Roundness after bent ＜8%(CLR:1.5D)
Main motor power 4Kw, Total power: 9.5 kw
Voltage: 220 V , 3 phase
System hydraulic pressure 4MPa
Cooling system Water cooling
Size 3600×1200×1300mm (142” x 47” x 51” H)
Approximate weight 6300 lbs.
Includes 1” square tubing tooling.
PRICE: $35,000.00
FREIGHT: FOB: Anderson, IN. Loading included.
Terms: Secure payment in full prior to loading.
