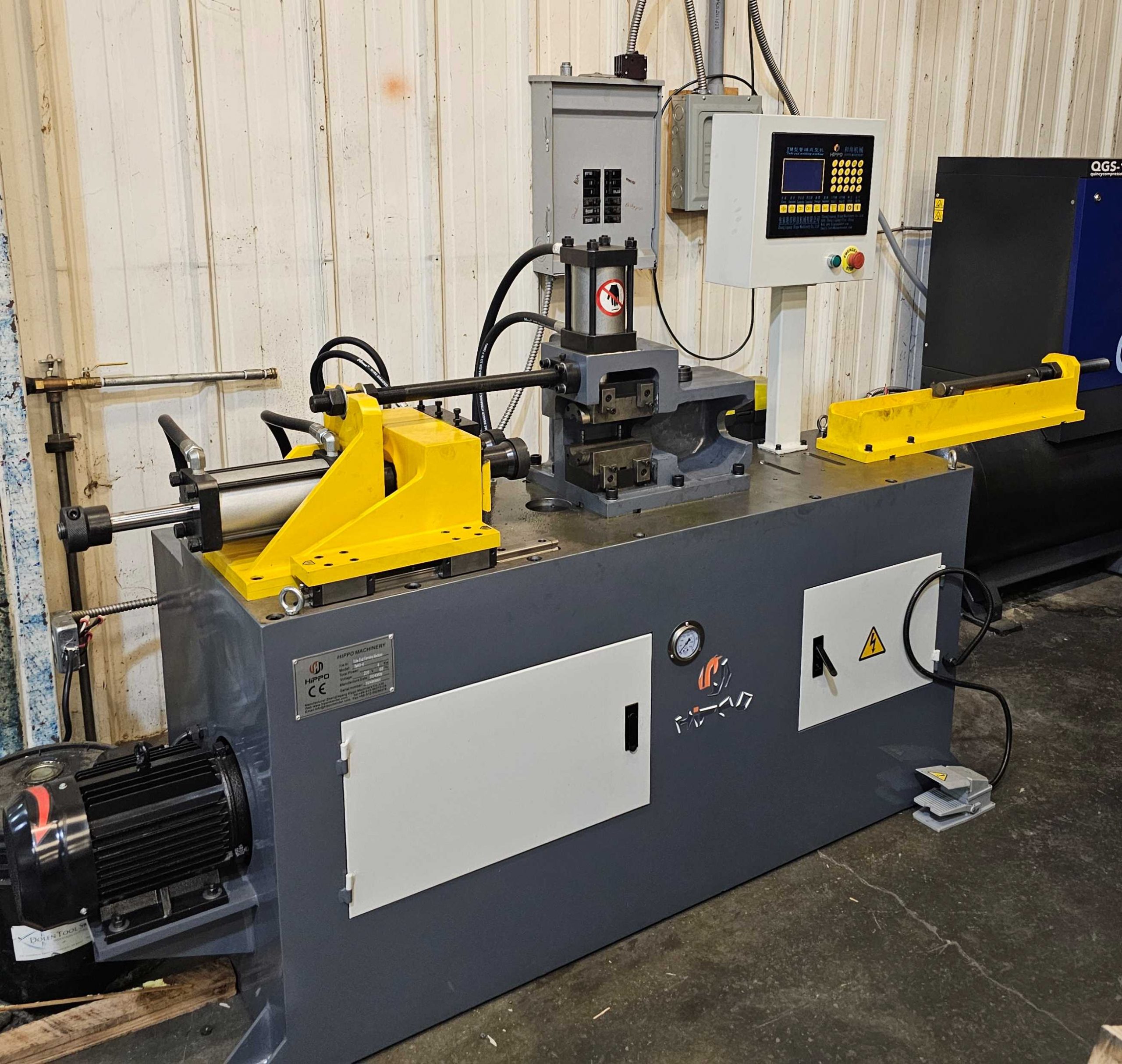

Hippo Model TM40-II Tube End Forming Machine
SN: 20240809001, Year: 2024.
SPECIFICATIONS:
Station quantity 2 station
Max processing tube diameter Φ40mm, 1.5”
Max forming length 100mm
Hydraulic cylinder pressure 8T
Oil pump power 4kw
Rated working pressure 12Mpa
Cycle time 3.5s/hit
Machine size 1950x800x1500mm (77” L x 31.5” W x 59” H)
Weight: Approx. 5,000 lbs.
Voltage: 220v, 60hz.
FEATURES:
- High-quality Q235 welded steel fabricated machine body, overall tempering and a thorough quality examination to eliminate internal stress, ensure sufficient strength, stiffness, and life
- Nodular cast iron QT500 for clamping devices and other machine parts
- Well-known brands for the machine components like the electrical system, hydraulic system, solenoid valve, guide rail.

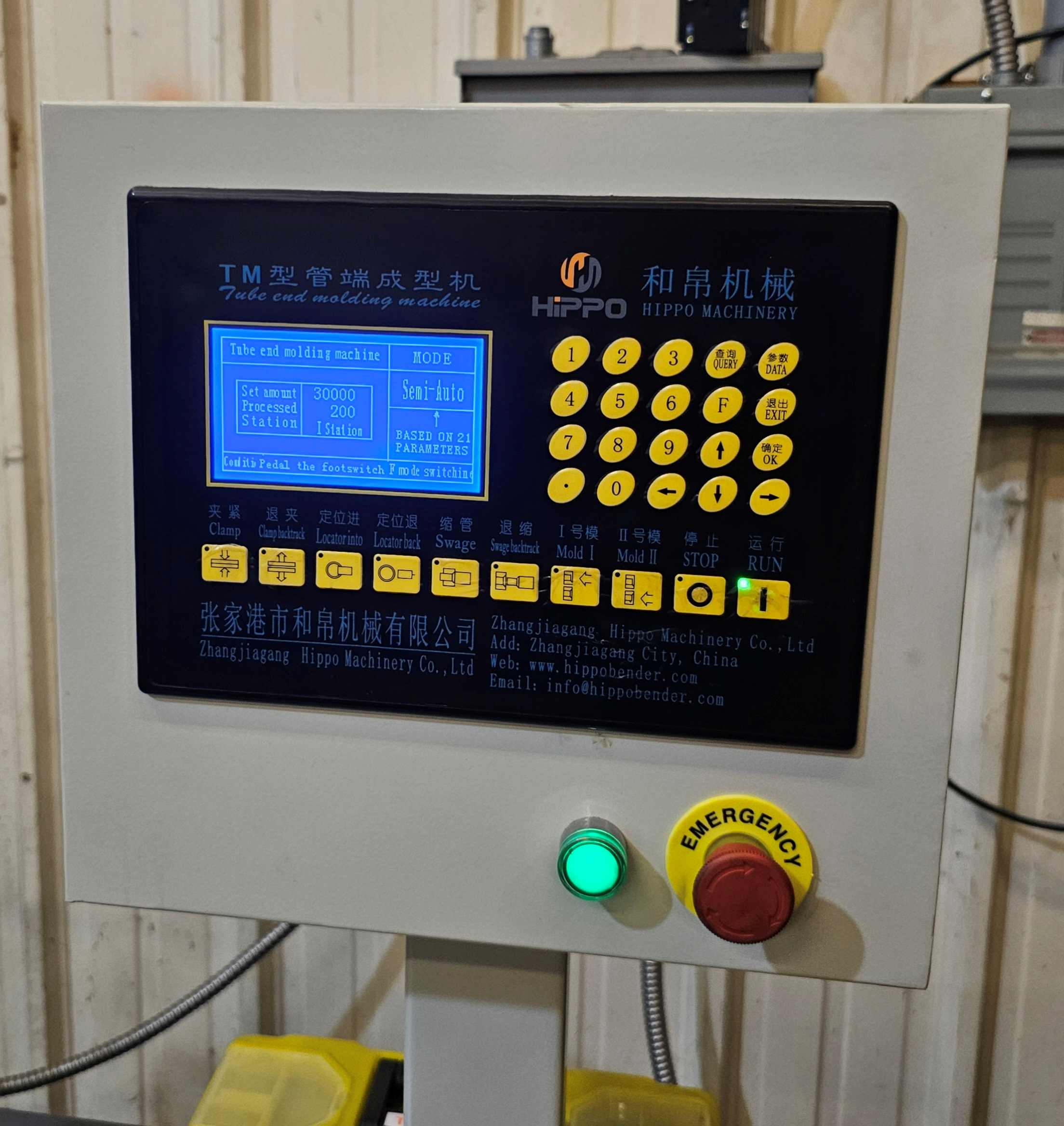

- NC control unit, easy to set up and operate
- The screen supports customized language
- Hydraulic drive die change, high-precision linear guide rail is used for propulsion, stable and smooth
- Imported solenoid valves and integrated circuits are used to control each action separately to extend the service life of hydraulic system components.
- Both manual and automatic operation modes are available.
- Durable end forming tooling.
- Quick-change tool design for reducing set-up time.
- Equipped with water cooling device to ensure long-term stable operation
- The mobile foot switch has two functions of start and emergency stop, and there is also an emergency stop button on the screen.
1” square tube swaging tooling included.
Price, FOB: Anderson, IN: $15,000.00
